Adding third party authentication to a mobile app is one of the most common challenges developers deal with. This feature cannot be excluded from your Ionic 2 app too. In this tutorial,
- We will start by configuring our machines for Ionic 2 app development
- We will use Supermodular 2 starter app where we will implement the third-party authentication with Facebook and Google providers using the ng2-cordova-oauth Angular 2 library.
- Finally, we will configure the side menu so our new screen is included.
Note: The complete source code of this tutorial is available in the ionic2-oauth Github repository.
Preparations
Before we begin, make sure you have your machine all set up for Ionic 2.
NodeJS
Download the installer for NodeJS and install the version 6 or greater.
Sass
In order to install Sass, firstly, you should make sure Ruby is installed on your machine since Sass has a Ruby dependency. If you have MAC OS, Ruby is already installed. Otherwise, you should install Ruby and, then, Sass. Depending on your OS, follow the quick instructions included in the official page of Sass.
Ionic and Cordova CLI
Whether you have a previous Ionic/Cordova installation and you want to update it or this is the first time you install them, open your terminal and run the command:
$npm install -g ionic cordova
Note: If you are a Mac or Linux user, the most likely is that you will need “sudo” at the front of this command in order to install the utilities globally.
Android and/or iOS Tools and SDKs
If you plan to build native apps for Android and iOS, you should install Android and iOS tools and SDKs on your machine. Since Ionic is based on Cordova, Cordova provides a very useful guide for installing the requirements for Android platform and iOS platform (Mac OS users only).
Starting a new Ionic 2 App
Supermodular 2 is a free starter template that allows you to start a new Ionic 2 project quickly offering some basic features commonly used in recent mobile applications. We are going to use it in order to build a basic Ionic 2 app with an extremely modular architecture and best software development practices applied.
Clone Github repo
Visit http://github.com/appseed-io/supermodular2 and download or clone the Supermodular 2 app:
$git clone https://github.com/appseed-io/supermodular2.git
Alternatively, it is recommended that you fork the repository since, later, you will be able to push any code you will add to this project straight to your own project repository.
Install libraries
Open a terminal window and navigate to the supermodular2
folder. Install the NodeJS dependencies:
$npm install
Install plugins and platforms
Install all the required Cordova plugins the app needs with the following command:
$ionic state restore
This command will actually restore all the platforms and plugins are included in the package.json
file.
Note: In case you do not work on a Mac OS machine, open the package.json file and replace the iOS platform with the Android platform or leave the cordovaPlatforms array empty if you do not want to add a platform yet.

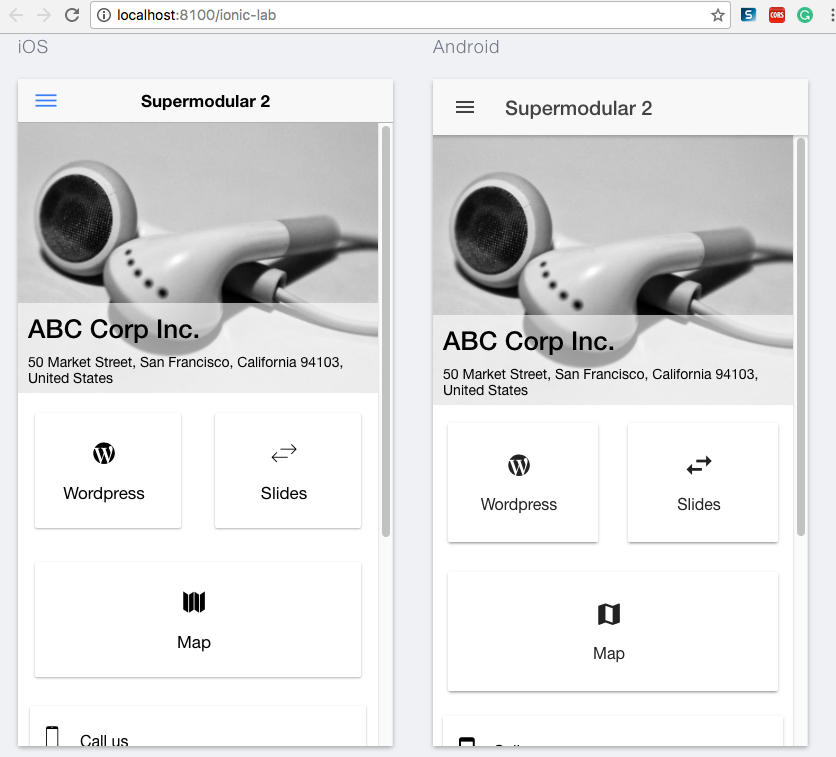

Run the app
In your terminal, make sure you are located in the supermodular2
folder and run the command:
$ionic serve --lab

Scaffold the new module

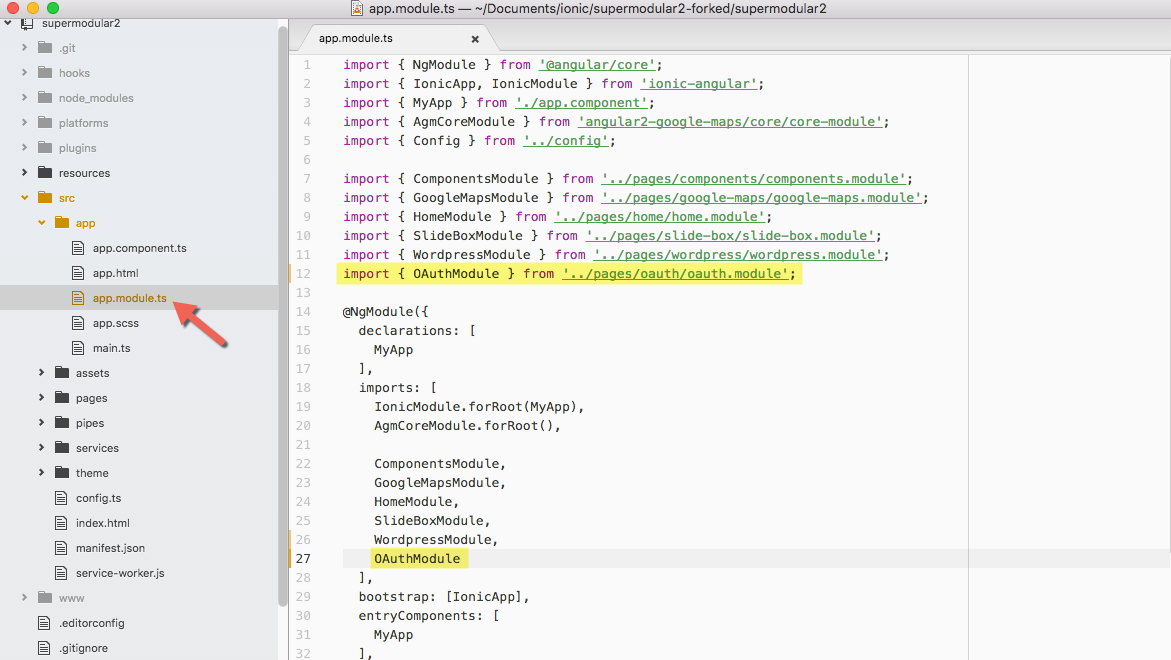

First of all, let’s just create the very basic structure of our a new module. We will add it where all our modules are collected, in the app.module.ts
file by adding the following lines in the highlighted area:
import { OAuthModule } from '../pages/oauth/oauth.module';and
OAuthModule

oAuth module

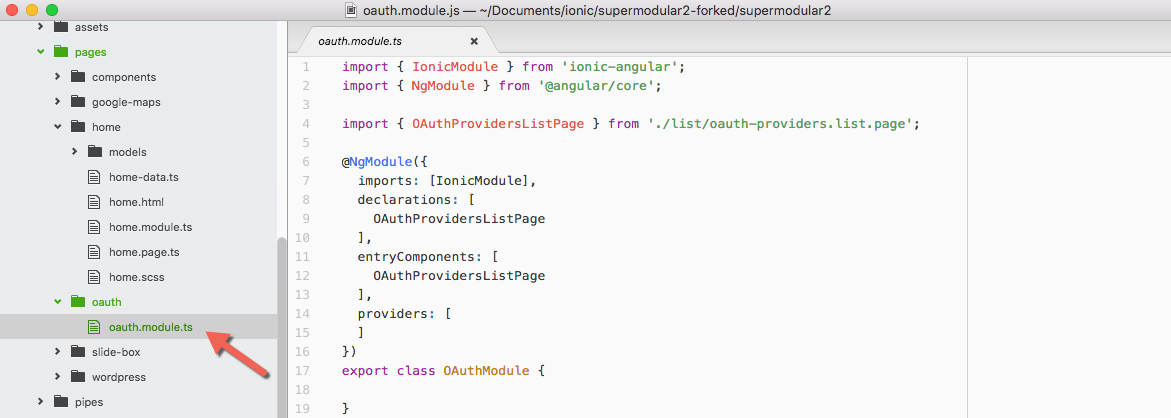

Create the oauth
folder that is going to contain all the files related to this feature. Then, create the oauth.module.ts
file where OAuthModule
that we previously imported in the app.module.js
file will be defined.
Copy the code that follows in the oauth.module.ts
file. For now, we will declare only the page where we are going to list the authentication providers.

Providers page

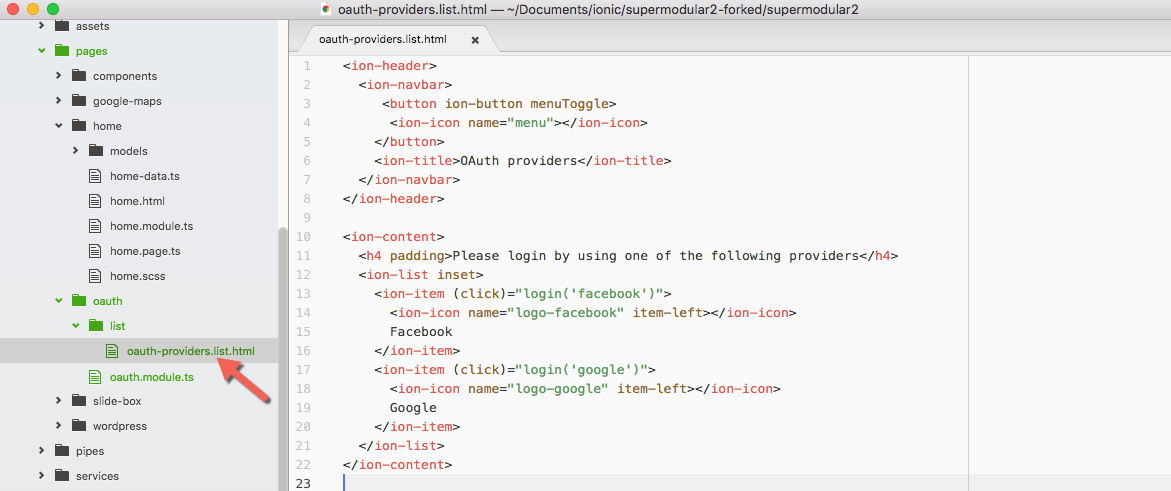

For the template with the list of the authentication providers, create an oauth-providers.list.html
file in the oauth/list
folder. This should look similar to the code provided in the following snippet:

Login method
We call the login()
function on the user click so let’s move to the corresponding page for this screen. For the time being, we will leave this function empty since we only want to scaffold the page.

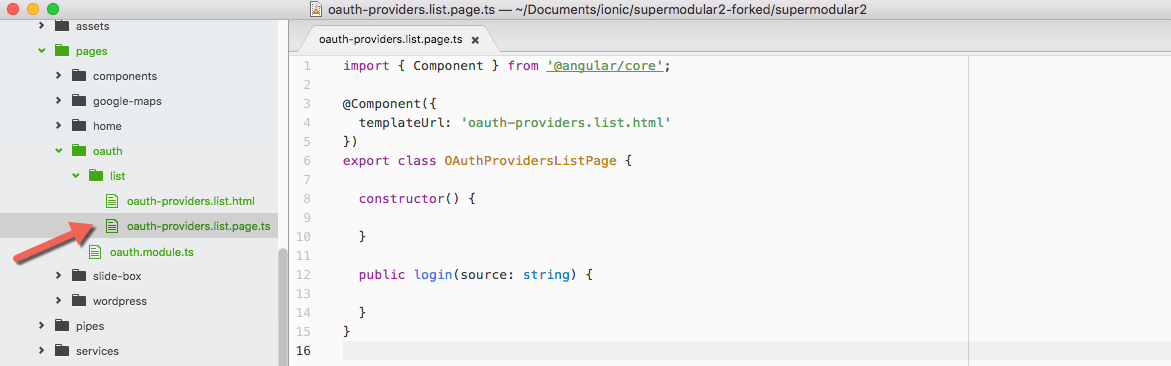

Under the oauth/list
path, create an oauth-providers.list.page.ts
file and paste the code:

Menu option

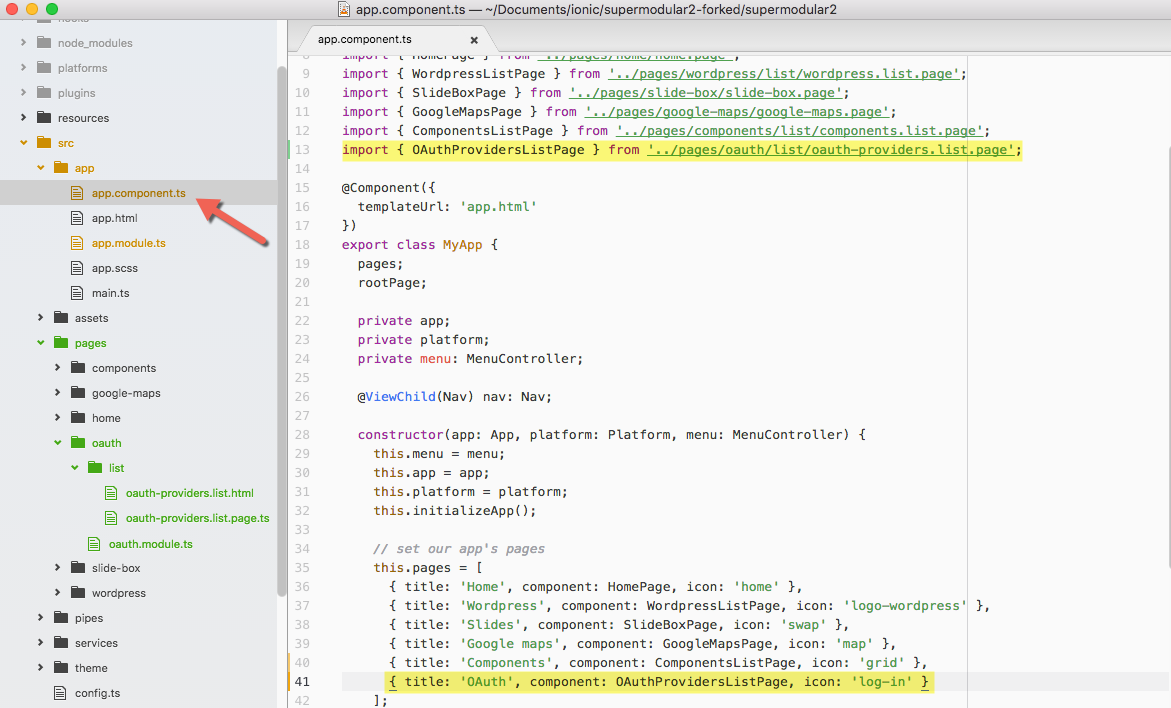

Finally, we will add an entry in our side menu so the user can have access to the screen with the list of the authentication providers we created. In order to do this, we will add the highlighted code in the app.components.ts
file.

Run / Test

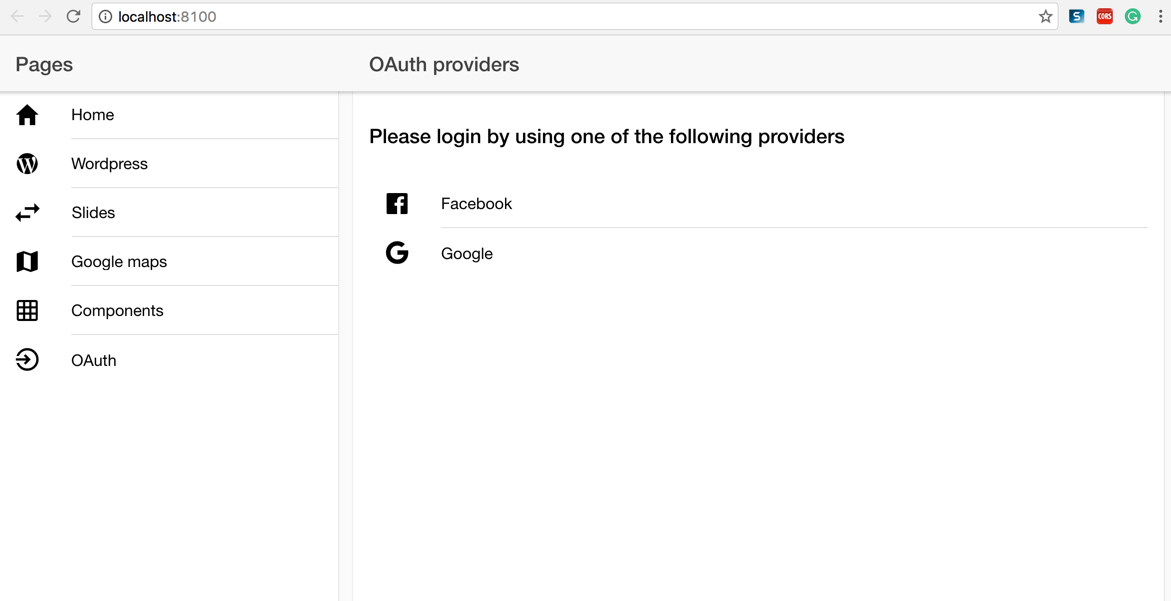

By now, we should be able to run our app and see the newly added screen:

Implement Login logic
Abstract authentication service
Next, we will implement a service that will perform the tasks associated with the authentication feature such as the user login, logout and the profile information retrieval.
For starters, let’s implement the logic for the login functionality. Create an oauth.service.ts
file in the oauth
folder and paste the following code in there:

In short, the login()
function accepts the provider-source as a parameter and returns a promise for the OAuthToken
object. It makes use of the login()
function that belongs to the service of a particular authentication provider injected by the getOAuthService
function which returns an Interface for the authentication provider (IOathProvider
). Finally, it uses the setOAuthToken()
function and sets the authentication token in the local storage. Also, we will create a getOAuthToken()
function for getting the authentication token back from the local storage each time we need it.
Authentication provider and token interfaces

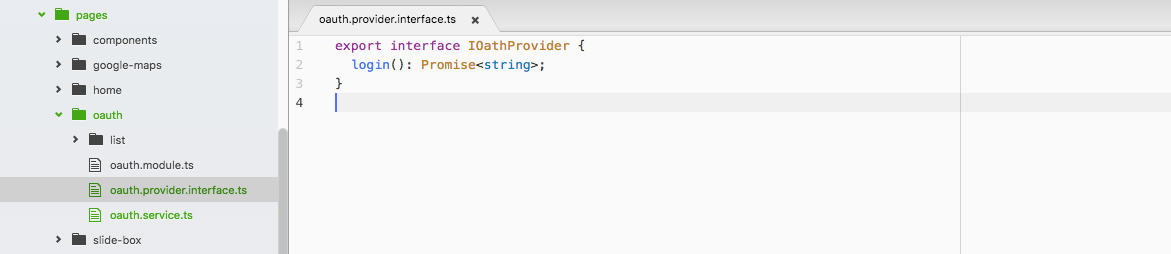

As we have already mentioned, the IOathProvider
should include a login()
function. Therefore, we should set the following interface that will act as an abstract type/model for the IOathProvider
object. Create an oauth.provider.interface.ts
file in the oauth
folder and include the following lines in it:

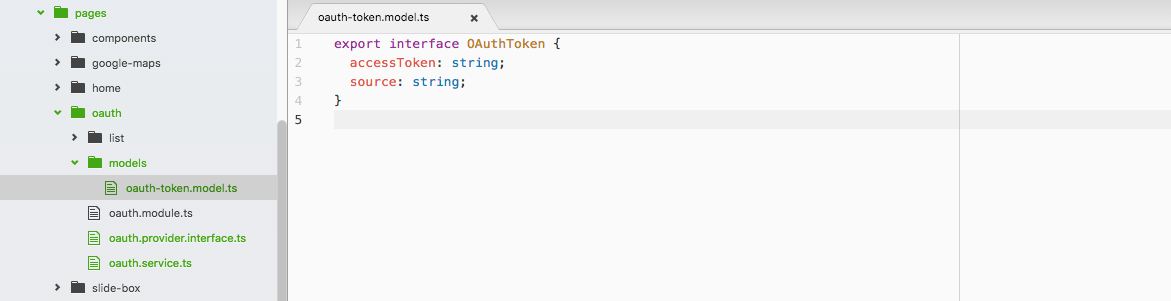

Also, we will set an interface for the OAuthToken
. Therefore, create the oauth-token.model.ts
under the oauth/models/
path and paste the following code:

Facebook and Google authentication services
As a next step, we should implement the services for each one of the authentication providers our app has, i.e. FacebookOauthProvider
and GoogleOauthProvider
.
Install dependencies
Here is when the ng2-cordova-oauth library comes handy. We can install it by executing the command:
$npm install ng2-cordova-oauth --save
Also, our app relies on the Cordova InAppBrowser plugin. We are going to install it with:
$ionic plugin add cordova-plugin-inappbrowser
Do not forget to include cordova-plugin-inappbrowser
in your package.json
file too, so it can be installed with the rest of the plugins anytime you install your project from scratch.
Implement the Facebook and Google authentication providers

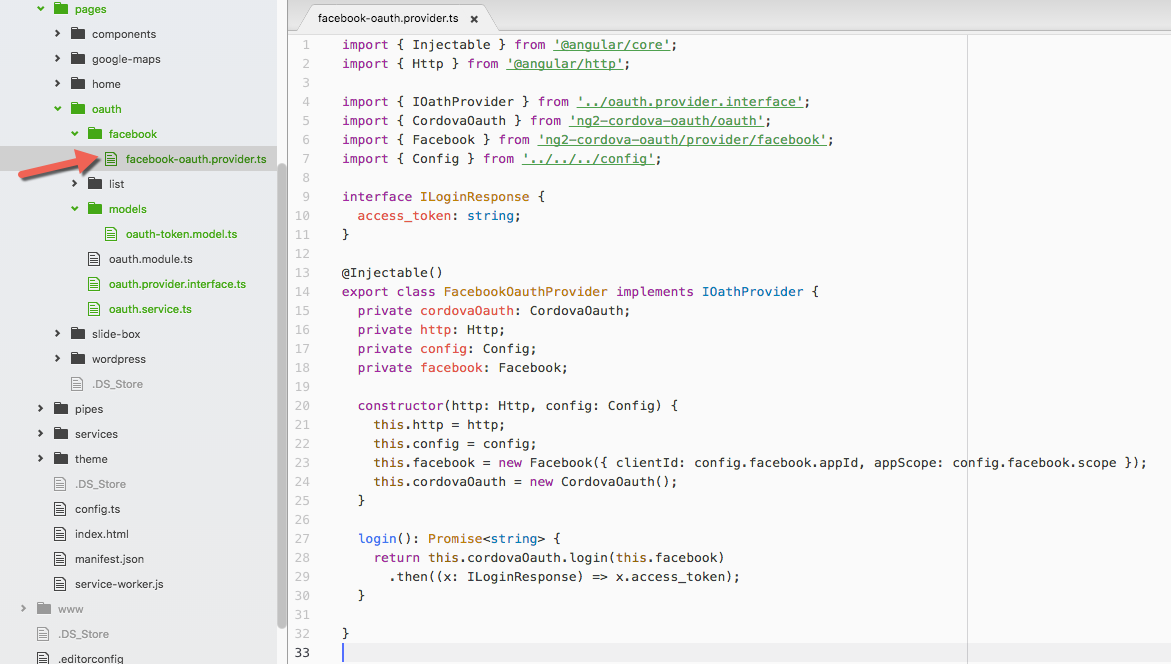

Let’s create the facebook-oauth.provider.ts
file under the oauth/facebook/
path. In this file, include the code in the snippet:

Here, import the CordovaOauth
and the Facebook
classes. In the constructor we initialize the Facebook
object by passing the clientId
and appScope
in the configuration options. We pass these options through Config
which is a basically a file with all the variables one should change in order to configure the app with their own settings. The login()
function logs in the user and returns a string with the access token as a Promise.
The clientId
came from the app you will need to configure with Facebook using the Facebook Developer Dashboard. For more information, refer to the “Facebook and Google applications configuration for developers” section at the bottom of this article.
Similarly, using the CordovaOauth
object available by the ng2-cordova-oauth library, we will implement the Google authentication provider with its own login()
function. However, here we pass another clientId
from Config
that corresponds to the application we configured with Google using the Google Developer Console. Again, for more information, refer to the “Facebook and Google applications configuration for developers” section at the bottom of this article.

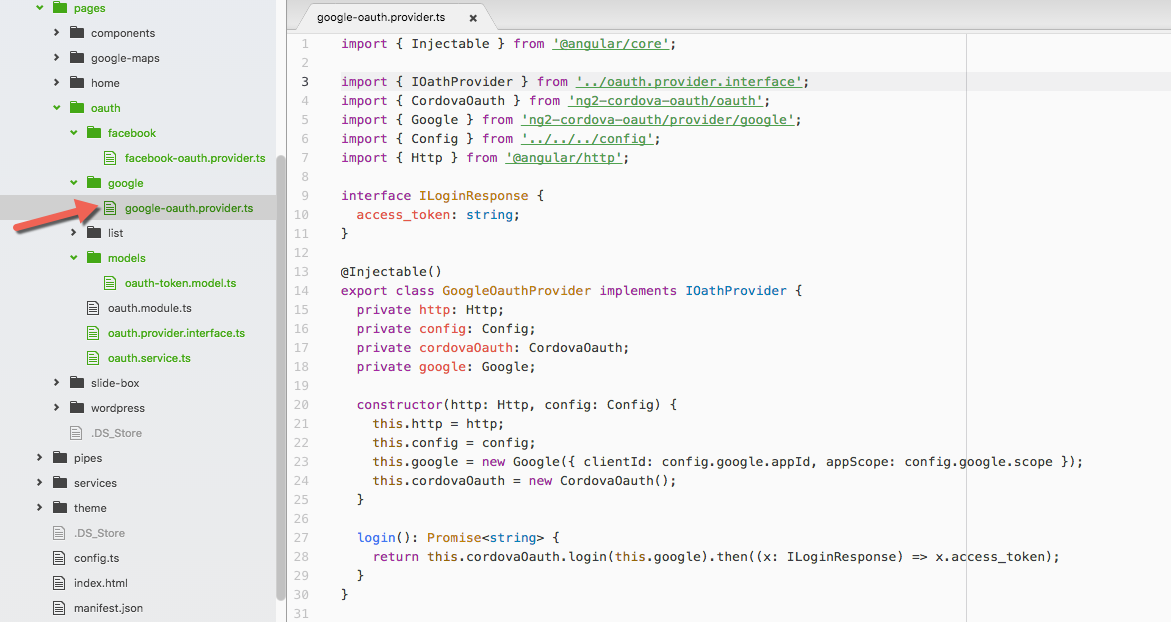

Therefore, create a google-oauth.provider.ts
file and paste the following lines:

Declare services/providers in module

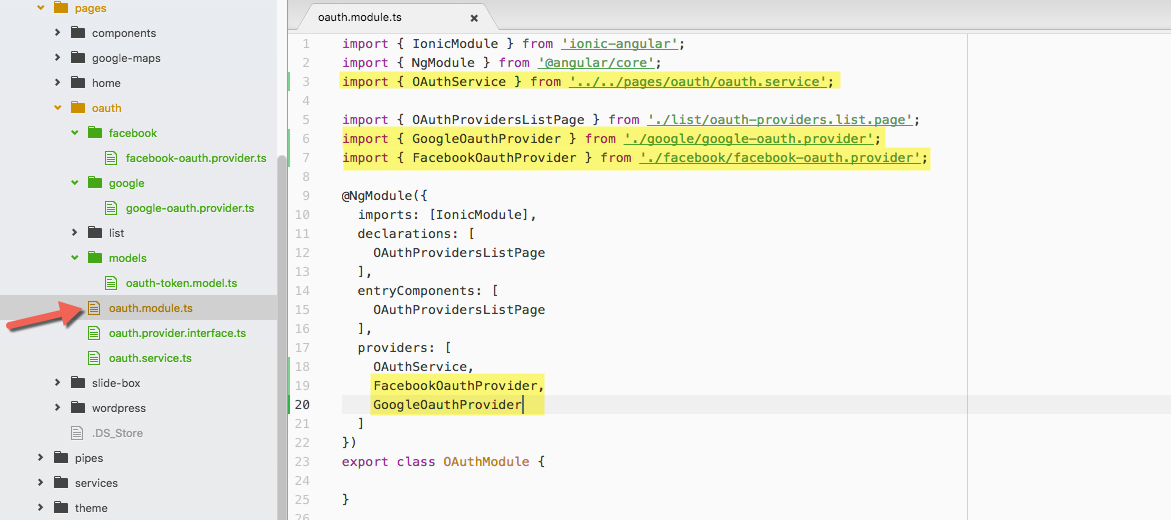

Since we are following a modular architecture, we are going to declare all our services in the oauth.module.js
file. Consequently, open the oauth.module.ts
file and add the following lines as highlighted:

Implement root login() function
Now that we have completed the implementation of the login logic, we are going to implement the login()
function we left empty in the oauth-providers.list.page.ts
file. Simply, we will call the login()
function of our oauthService
and, if it is executed successfully it will log a related message in the console.

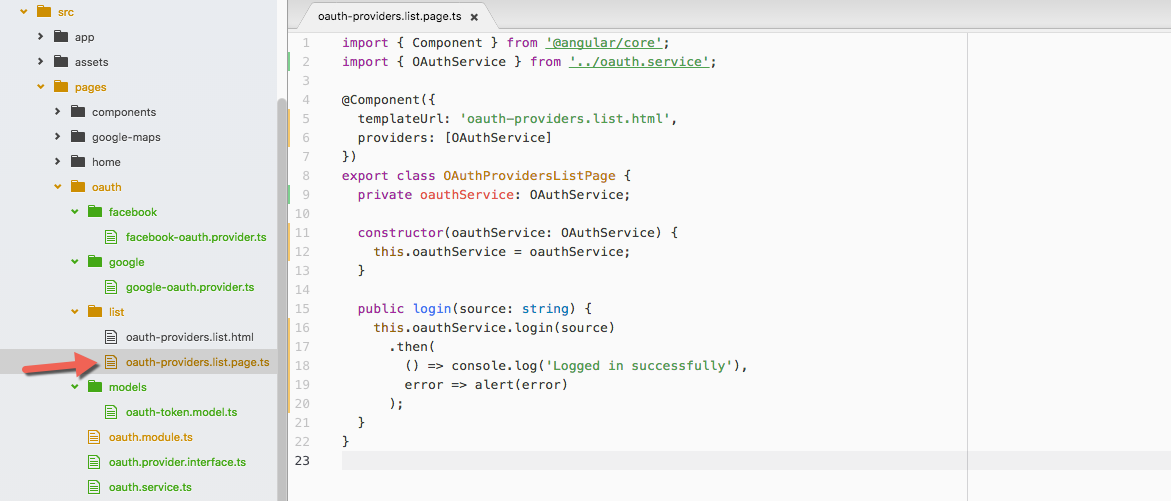

So, replace the login()
function with the provided code:

Run / Test

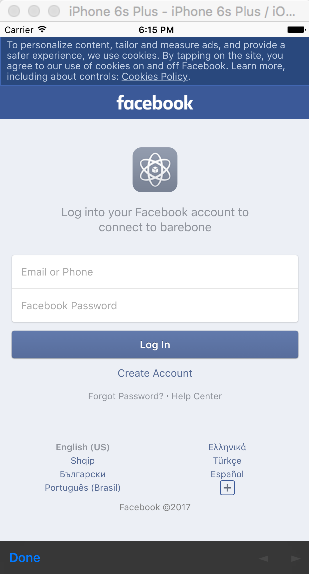

Now, we can run the app to make sure the user is able to login successfully. This time we will run it on the iOS simulator since that app uses Cordova plugins. After we hit Facebook, we should be able to see the Facebook login page and, after we enter our credentials, we should be able to see the log message. The same goes for Google authentication too.


Getting User Profile

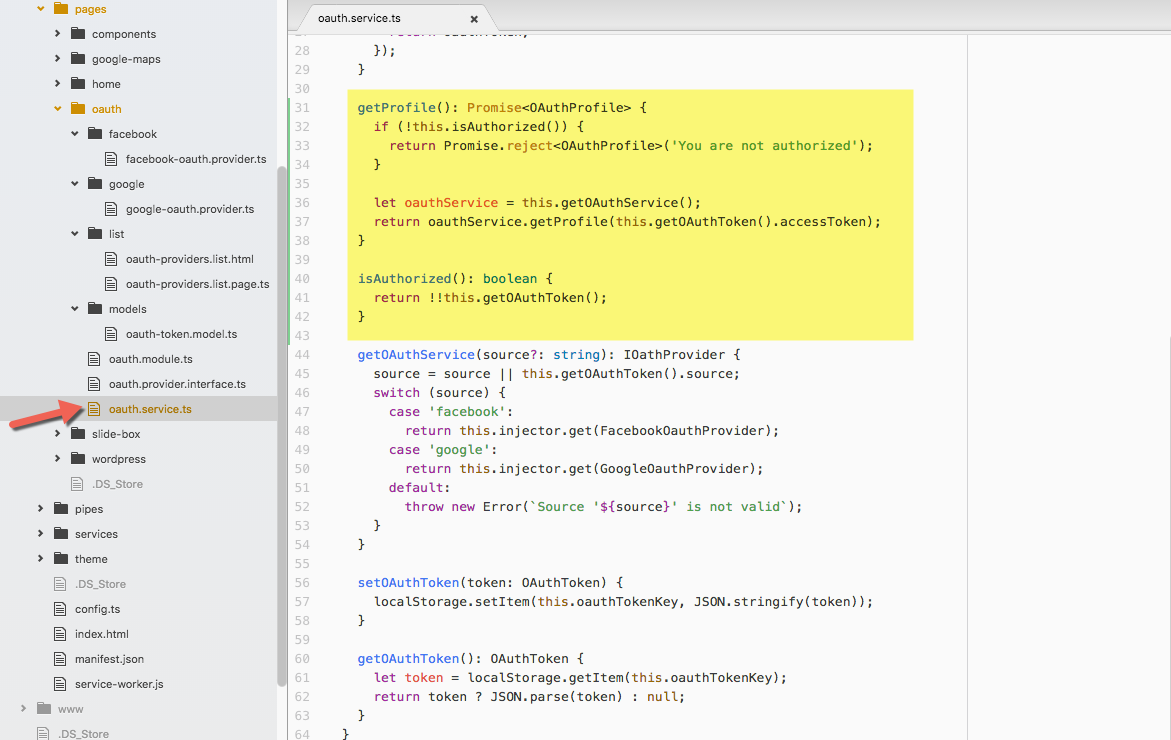

To begin with, we will add a getProfile()
function in our root authentication service, i.e. the oauth.service.ts
file. The code we are going to add is the following:

This function will check if the user is authorized so it calls the getProfile()
function specifically for a particular authentication provider passing the access token.
Get profile in authentication provider interface

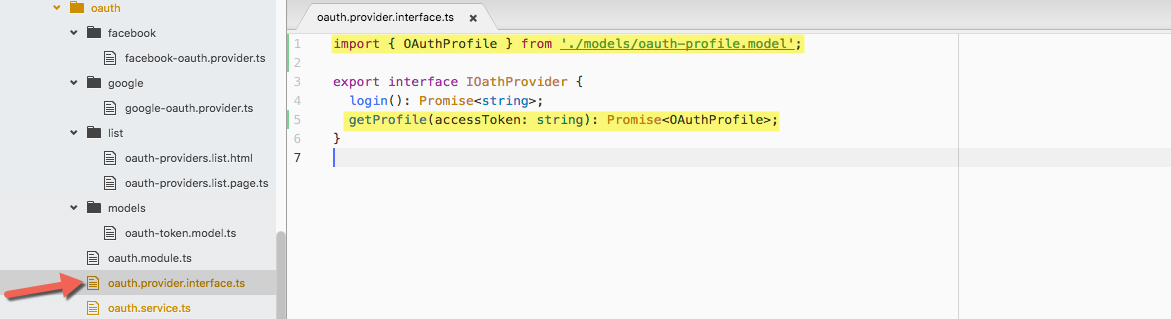

As we mentioned in the previous section, we need a getProfile()
function for each authentication provider. Therefore, we will define a getProfile()
function in the oauth.provider.interface.ts
file by adding the following lines as highlighted:

This function returns an OAuthProfile
object.
Create authentication profile interface

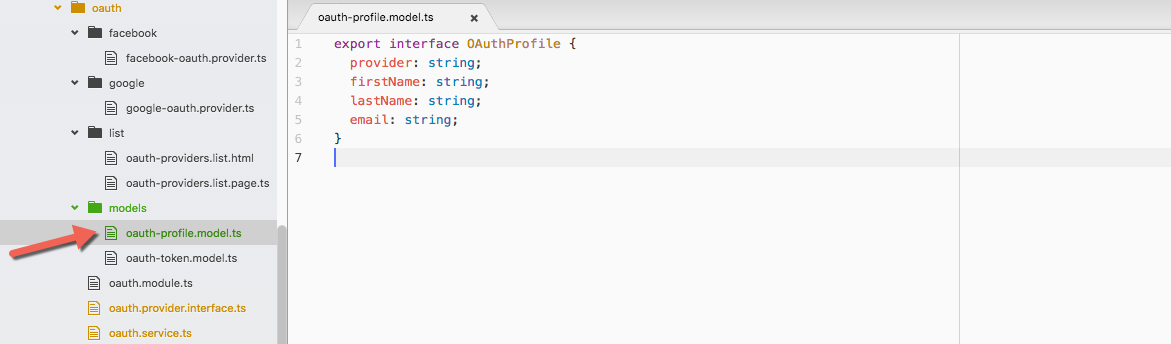

In order to define the OAuthProfile
interface, create an oauth-profile.model.ts
file under the oauth/models/
path and paste the following code:

Get profile in Facebook and Google authentication providers
The getProfile()
function we are going to add in the facebook-oauth.provider.ts
file is included in the code below. Notice to place the code sections as highlighted in the screen capture.

Here, we request the access token of the user profile, we map the access token we received to a JSON object since it is the result of an observable and we return the user profile as a Promise.

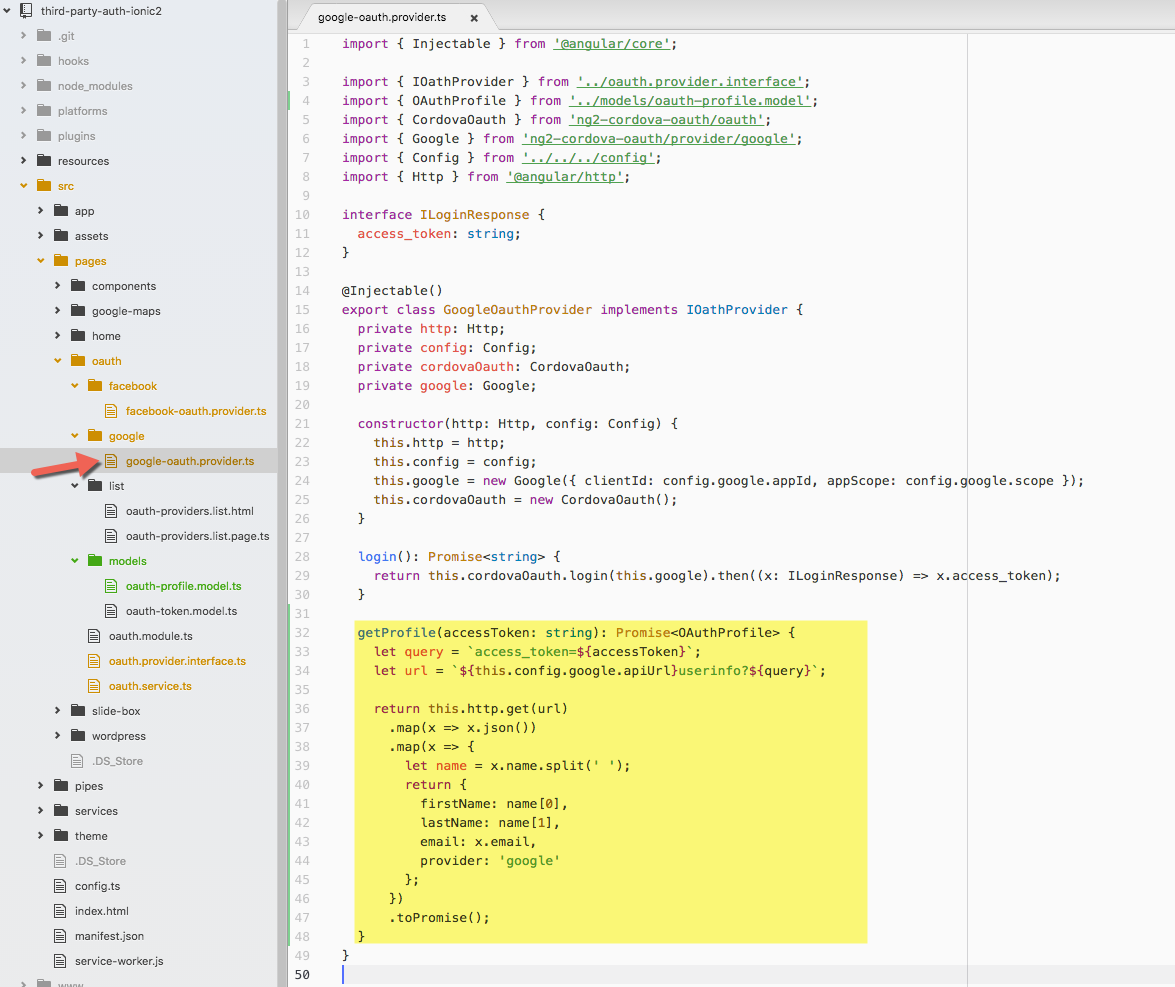

The getProfile()
function in the google-oauth.provider.ts
file will be really similar to that one of the Facebook authentication provider. Thus, let’s include the following lines in the google-oauth.provider.ts
file:

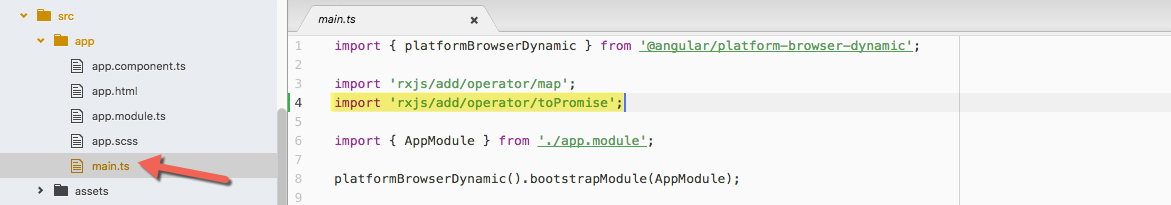

Note: Since Angular 2 uses Observables and Rxjs library to make async calls, make sure you have imported map
and toPromise
operators in your main.ts
:
import 'rxjs/add/operator/toPromise';

Create User Profile template

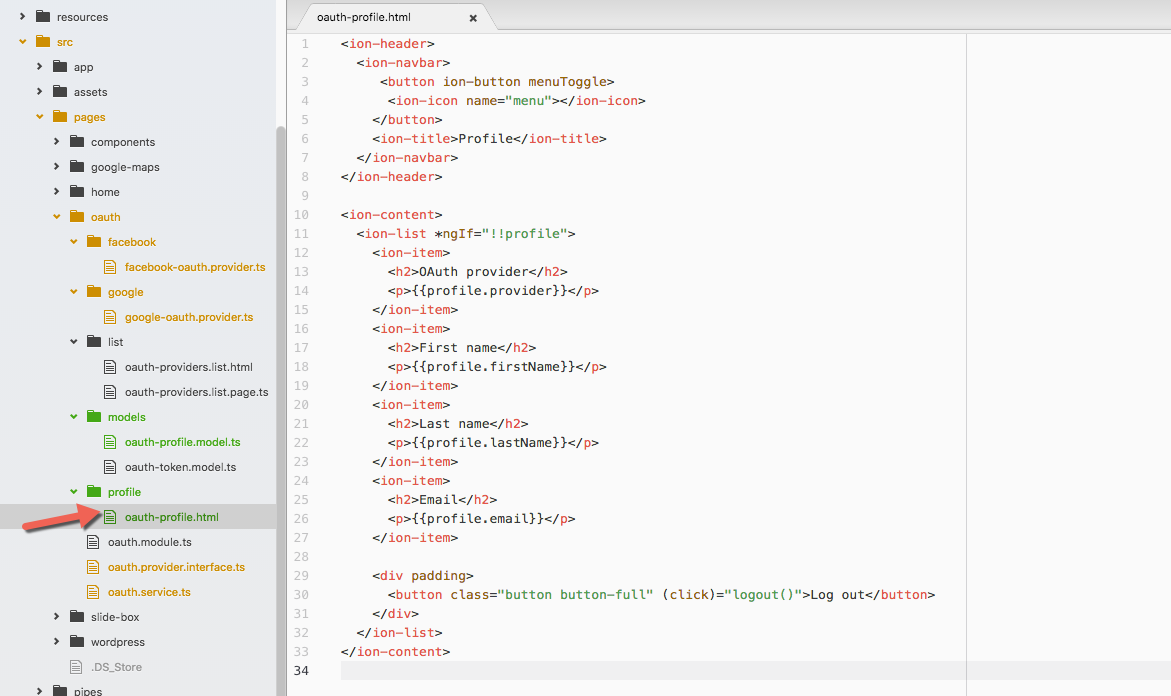

Let’s create a simple user profile template for displaying the authentication provider, user’s email and name. Under the oauth/profile/ path place the code of the following snippet:

Implement profile page

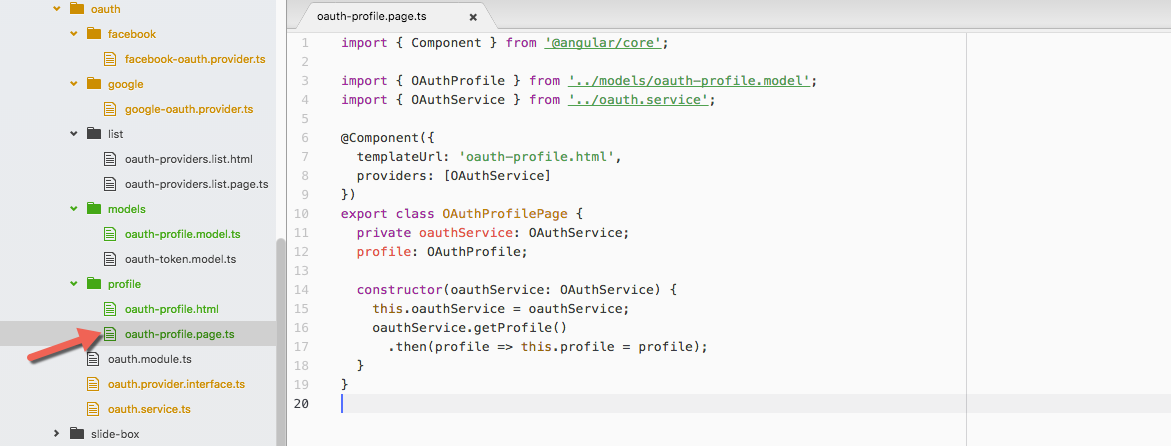

The page that corresponds to the user profile template should call the getProfile()
function of the root authentication service. As a result, create the oauth-profile.page.ts
file under the oauth/profile/
path and paste the code that follows:

Declare profile page in authentication module

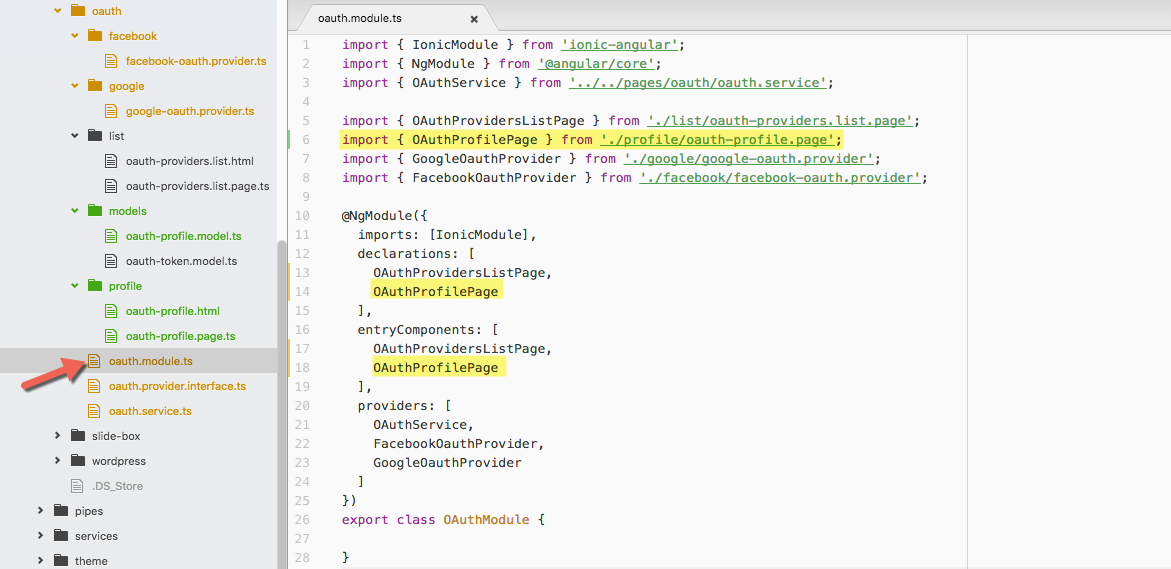

We should declare the profile page in the oauth.module.ts
file by adding the following lines as highlighted:

Navigate user to profile screen

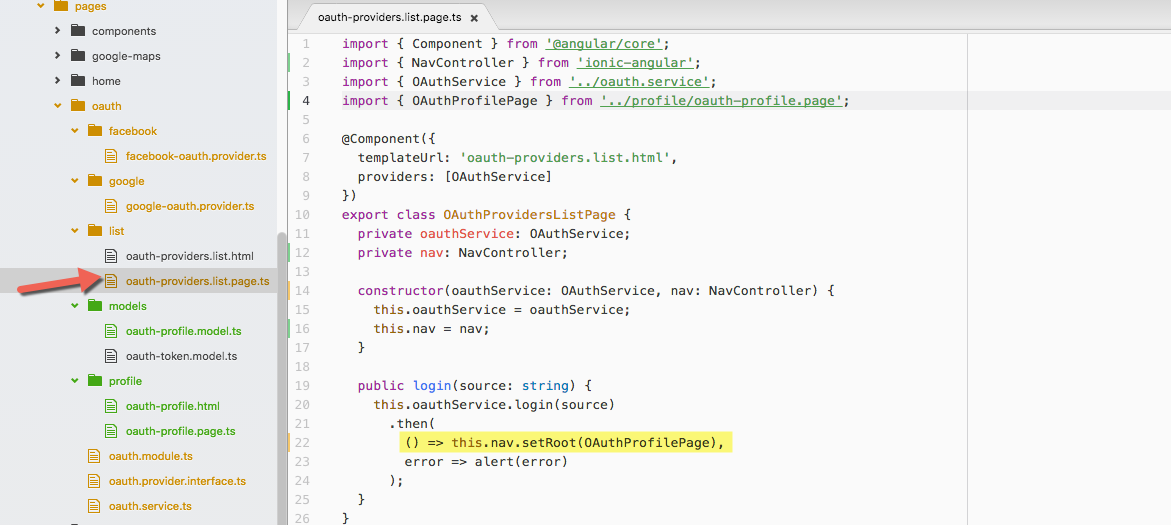

Finally, let’s change the login()
function in the oauth-providers.list.page.ts
file so the app navigates the user to the profile screen. The code that enables it is provided below:

Final Result

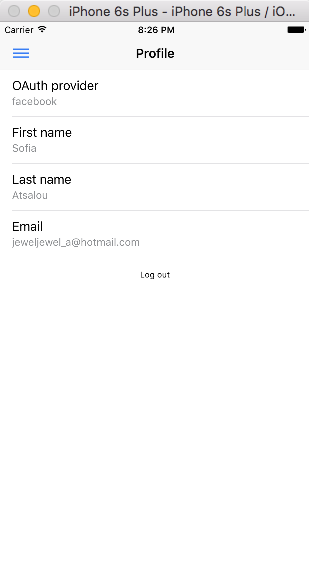

Running the app in the iOS simulator again, we should be able to view the profile screen showing the user profile information.

Facebook and Google applications configuration for developers
Facebook Application ID
Firstly, you should create and register a new Facebook Application by following the URL below:

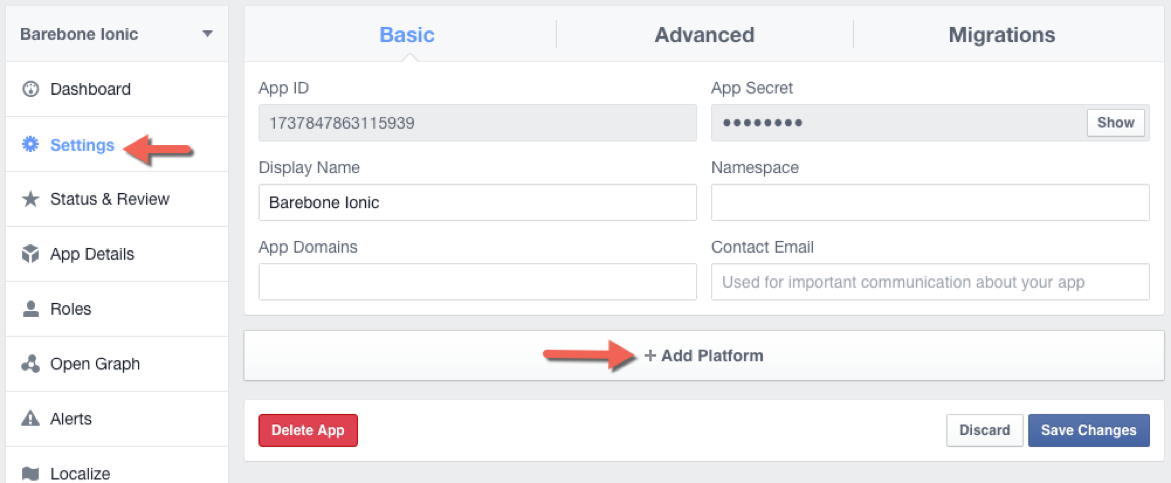

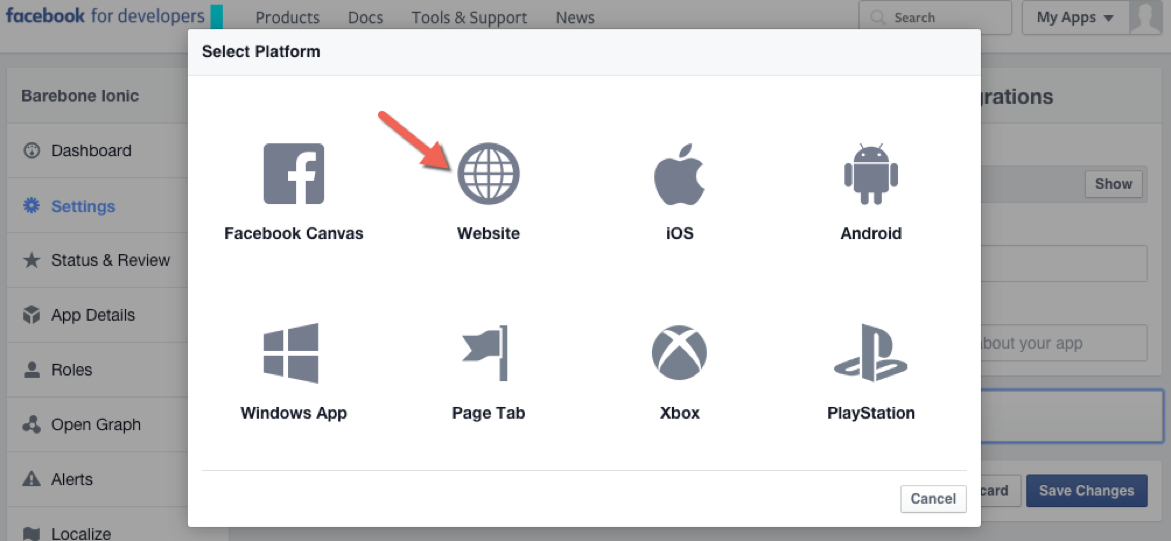

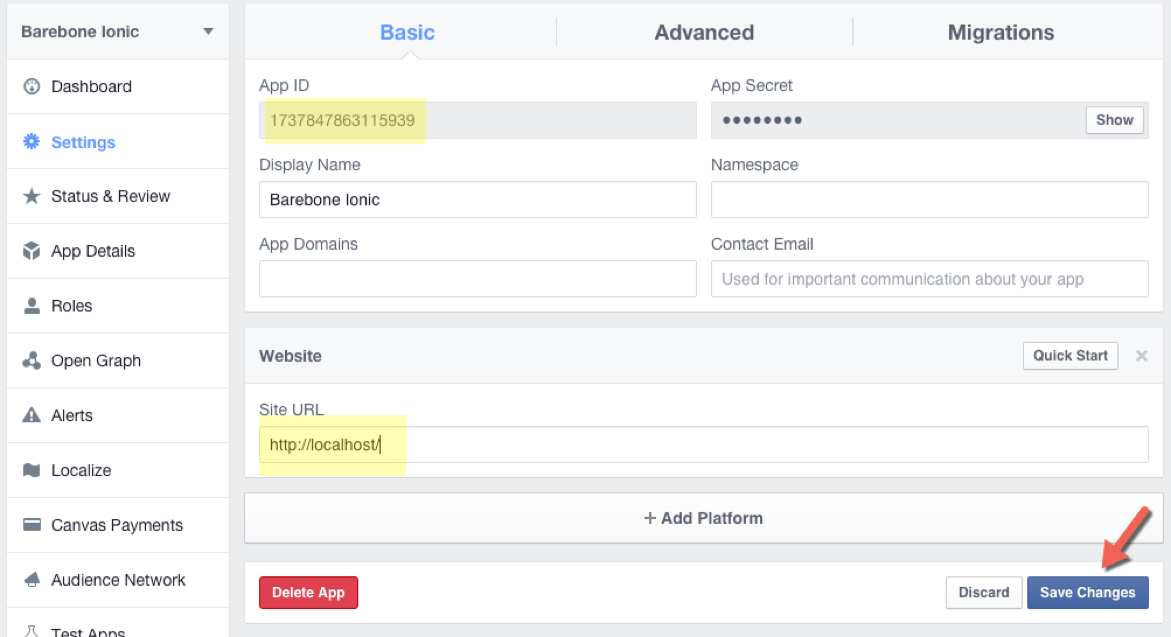

Once the Application is created navigate to the “Settings” page and select “Add Platform”.

Then, select “Website”

and set as “Site URL” the value “http://localhost/”. Also, keep a note of the “App ID” and hit “Save changes”.

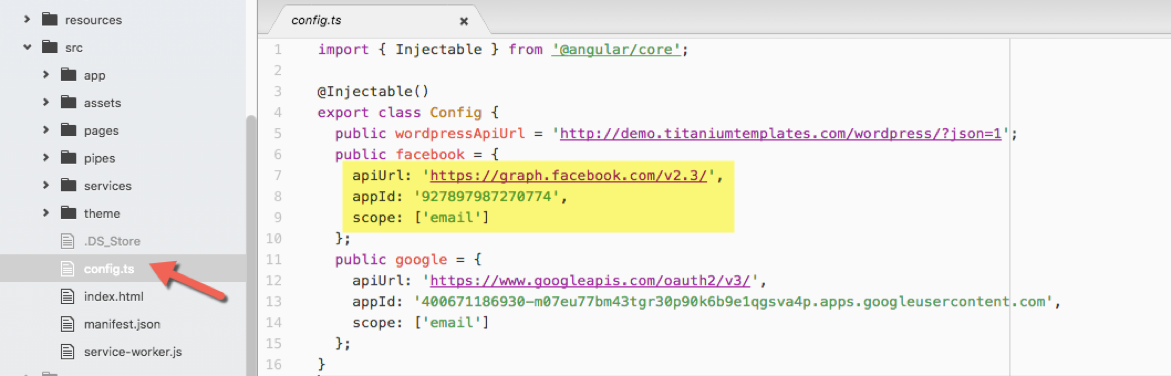

Once you create your Facebook App, set the related variables in the config.ts
file under the src
folder.

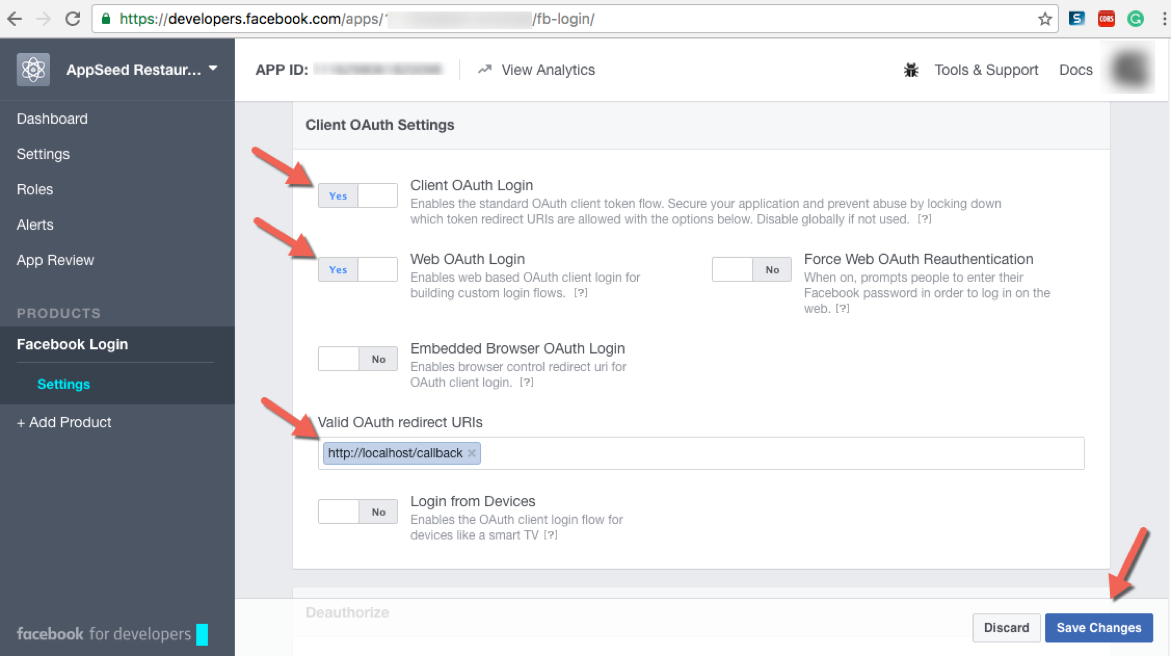

On the Facebook Developers platform, select “Add Product” from the side menu and, then, choose “Facebook Login”. Make sure you have enabled “Client OAuth Login” and “Web OAuth Login” and set your “Valid OAuth redirect URIs” to “http://localhost/callback”. At the end, do not forget to hit the “Save changes” button.

Google Application ID

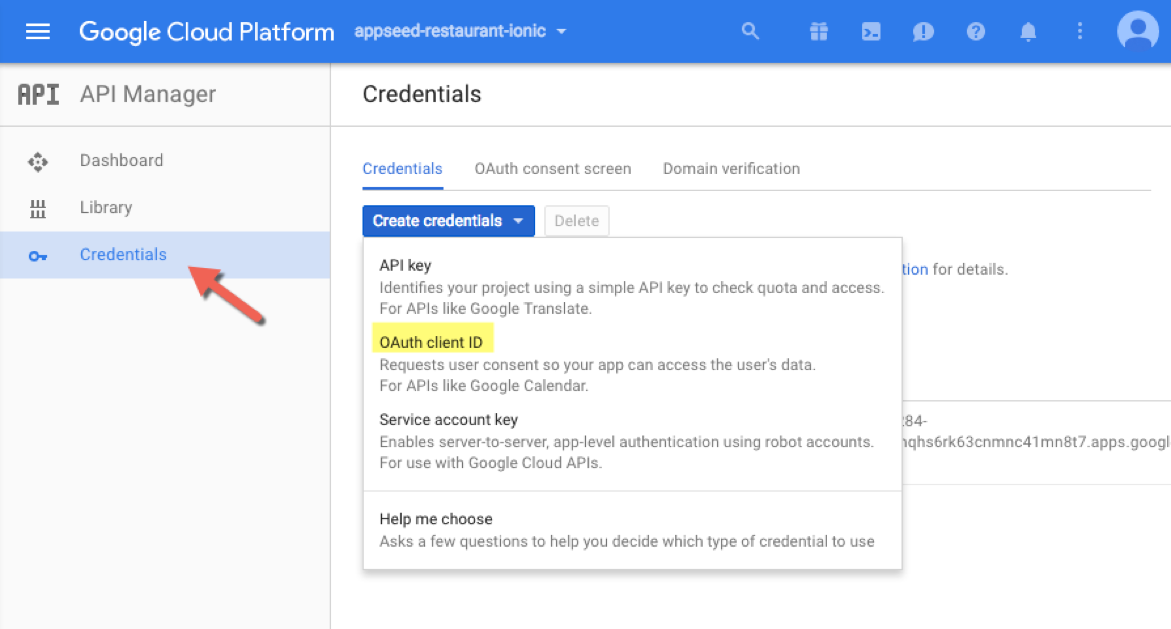

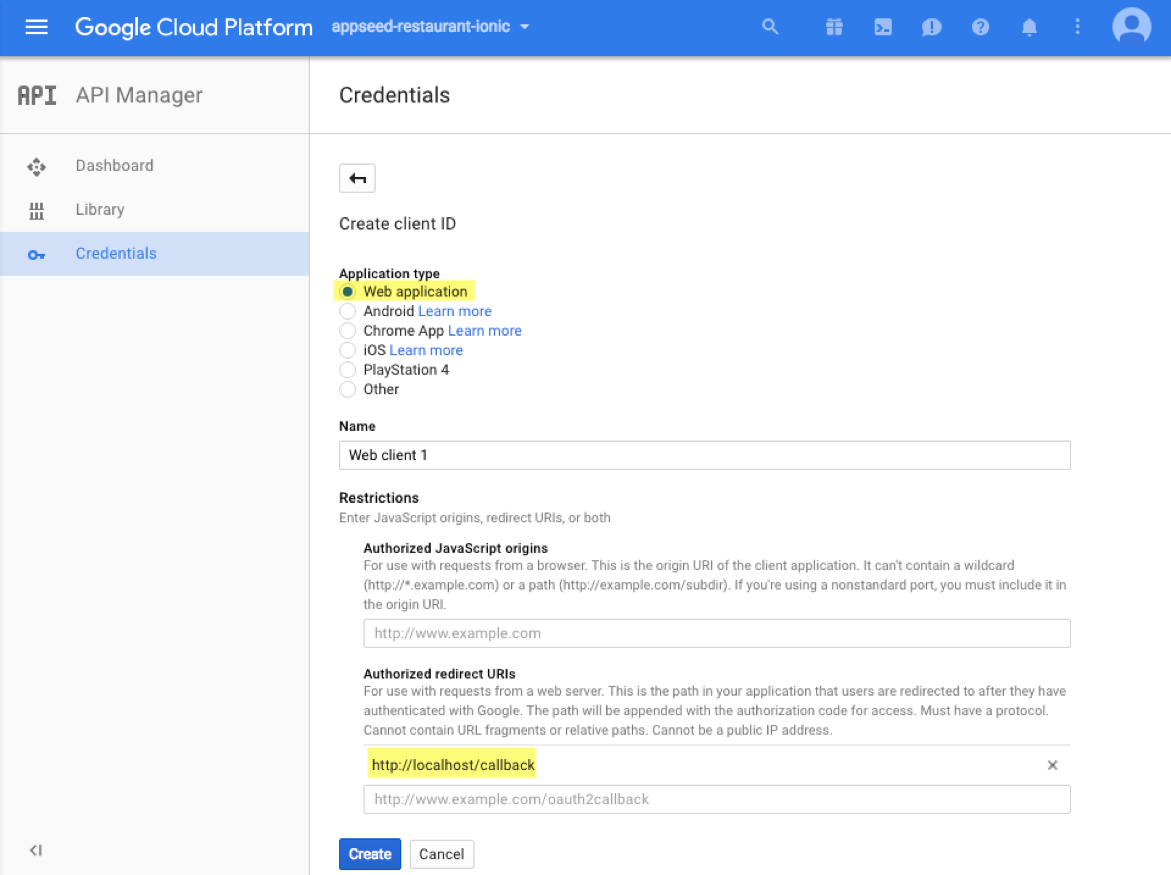

You should create and register a new Google App on Google Developer Console. In the credentials section, choose to create credentials for OAuth client ID.

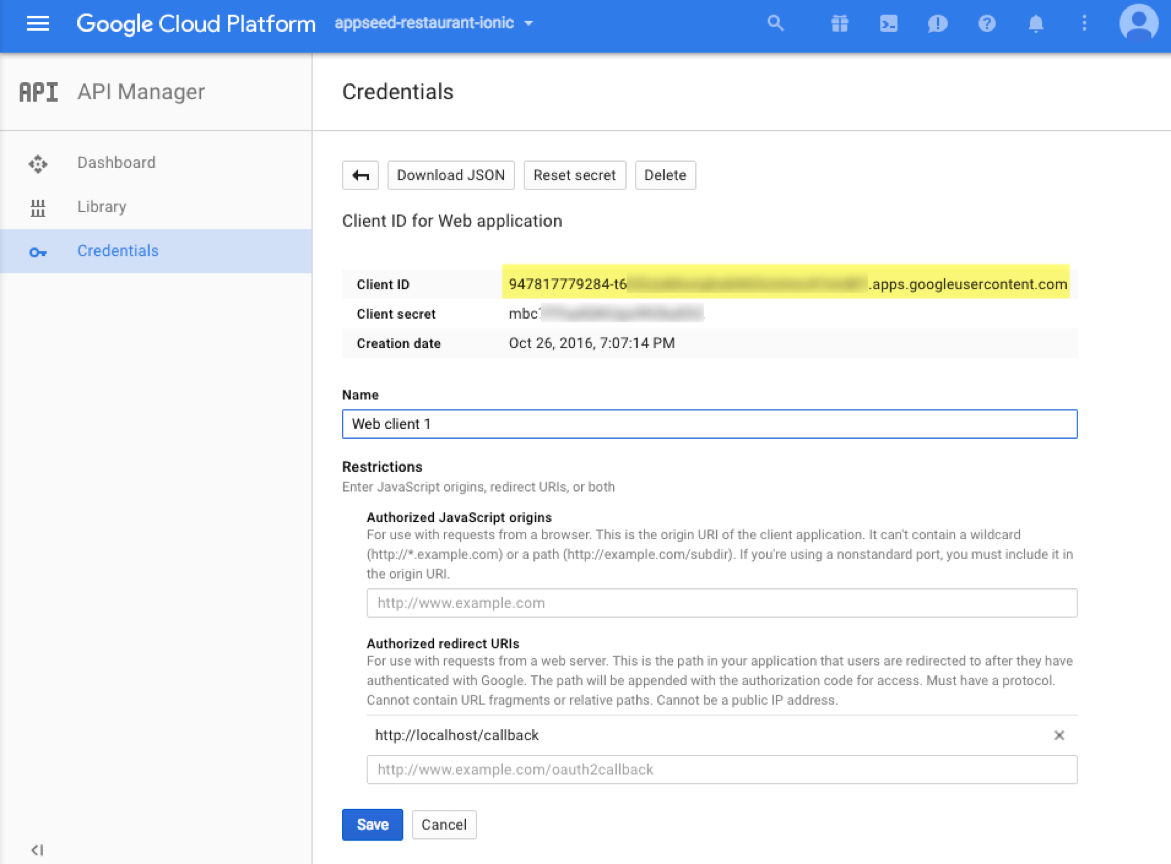

Then, select “Web application” and set the “Authorized redirect URIs” to “http://localhost/callback”.

Finally, copy the client ID

and set the related variables in the config.ts
file.

Need More?
To find authentication with more providers packed with many more features to incorporate in any Ionic 2 mobile app, check out Barebone Ionic 2, the Swiss Army Knife of Ionic2!
References
Ionic2, Angular2, Source code of this tutorial, cover photo.
